Mastering D / A Converter

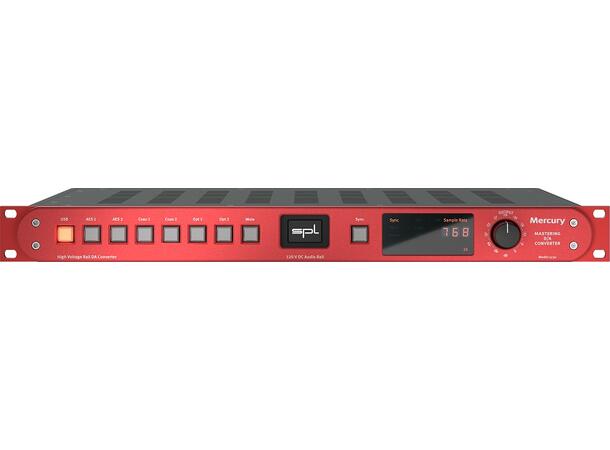

Mercury er den første mastring-DA-konverter i 120V-teknologi. Den tilbyr syv digitale stereoinngangskilder, som alle kan synkroniseres med hverandre eller med en ordklokke. Den ekstra variable utgangen kvalifiserer Mercury som en monitorkontroller.

Tilgjengelig i Sort, Rød og Sort/Sort - se bilder.

Specifications

Print view

Analog inputs & output; XLR (balanced)

Maximum input & output gain

32.5 dBu

Input impedance

20 kO

Output impedance

75 O

Common mode rejection

-82 dBu

Frequency range (-3 dB)

4 Hz – 300 kHz

Crosstalk (1 kHz)

-108 dBu

THD (0 dBu, 1 kHz)

0.000992 %

Noise (A-weighted)

-102.5 dBu

Dynamic range

135 dB

Digital Inputs, DAC768

AES/EBU (XLR), PCM sample rates

44.1/48/88.2/96/176.4/192 kHz

Coaxial SPDIF (Cinch), PCM sample rates

44.1/48/88.2/96/176.4/192 kHz

Optisch SPDIF (Toslink F06), PCM sample rates

44.1/48/88.2/96/with Glass fibre <1m: 176.4/192 kHz

USB (B), PCM sample rates

44.1/48/88.2/96/176.4/192/352.8/384/705.6/768 kHz

USB (B), DSD over PCM (DoP), sample rates

2.8 (DSD64), 5.6 (DSD128), 11.2 (DSD256) MHz

0 dBfs calibrated to

15 dBu

Internal Linear Power Supply with Shielded Toroidal Transformer

Operating voltage for analog audio

+/- 60 V

Operating voltage for relays and LEDs

+ 12 V

Operating voltage for DAC768

+ 7 V, +3.3 V

Mains Power Supply

Mains voltage (selectable, see fuse chamber)

230 V AC / 50; 115 V AC / 60 Hz

Fuse for 230 V

T 500 mA

Fuse for 115 V

T 1 A

Power consumption

max. 40 VA

Stand-by power consumption

< 0,3 W

Dimensions & Weight

W x H x D (width x height x depth)

482 x 44 x 300 mm

19 x 1.73 x 11.8 inch

Unit weight

4.55 kg

10 lbs

Shipping weight (incl. packaging)

6.7 kg

14.77 lbs
