Tekniske data |
Peak output power | 1,800 W |
Power rating | 1,280 W |
Power rating at 2 O | - |
Power rating at 4 O | 8 x 160 W |
Power rating at 8 O | 8 x 100 W |
Power rating at 16 O | - |
Power rating at 100 V | - |
Power rating with 4 O bridged operation | - |
Power rating with 8 O bridged operation | 4 x 320 W |
Output impedance | - |
Channels | 8 |
Zones | - |
Inputs | 0.7 V/20 kO |
Attenuation factor | - |
Frequency range | 12-20,000 Hz |
Crossover network | yes |
Crossover frequency | 240 Hz |
Integrated limiter | yes |
Equalizer bass | - |
Equalizer midrange | - |
Equalizer treble | - |
S/N ratio | > 80 dB |
Crosstalk attenuation | > 60 dB |
THD | < 0.1% |
Mains voltage | ~ 230 V |
Mains frequency | 50 Hz |
Power consumption, operation | 2,400 VA |
Power consumption, standby | - |
Standby current | - |
Operating voltage (possible alternative) | - |
Power supply (possible alternative) | - |
Admiss. ambient temp. | 0-40 °C |
Width | 482 mm |
Height | 132 mm |
Depth | 310 mm |
Rack spaces, RS | 3 |
Weight | 16.6 kg |

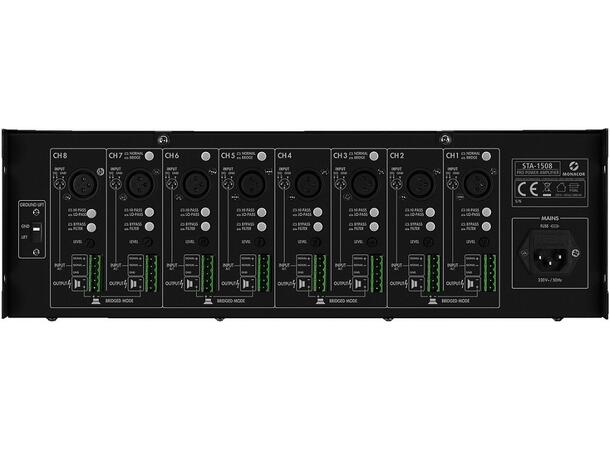

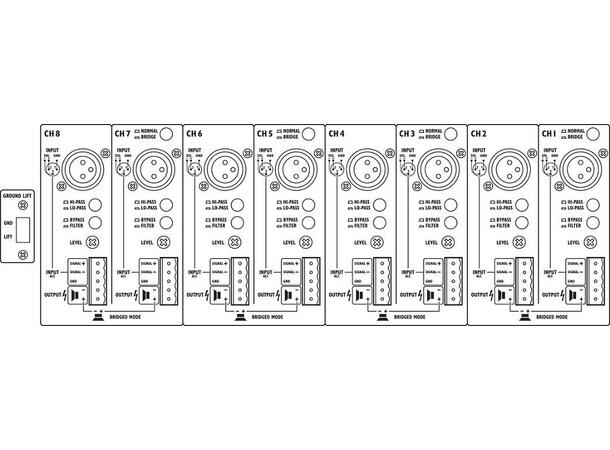

Connections | 8 x 3-pole XLR, bal. 8 x screw terminal |
